Moulded Ejectors ND 25

Vimatic ejectors obtained through injection moulding press (ND 25 series), have been designed particularly for standardized industrial applications, uses in the agricultural field, water purification, industrial laundries, vacuum generation, dosages in general, fluids pouring, etc.. We specifically produce some most commonly used default samples. The productive process allows to obtain different samples (still ND 25, with distinctive performance according to the costumer's request). These ejectors are especially adaptable thanks to the implementation of various types of connection.

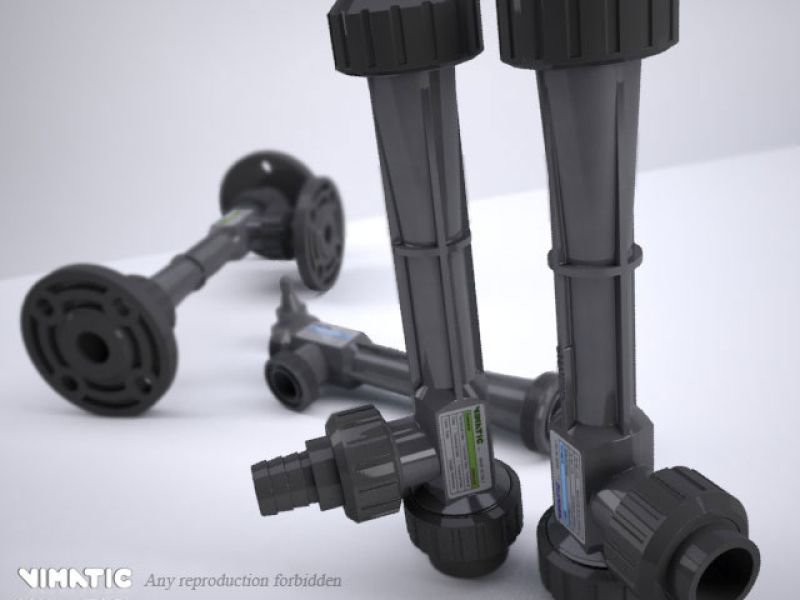

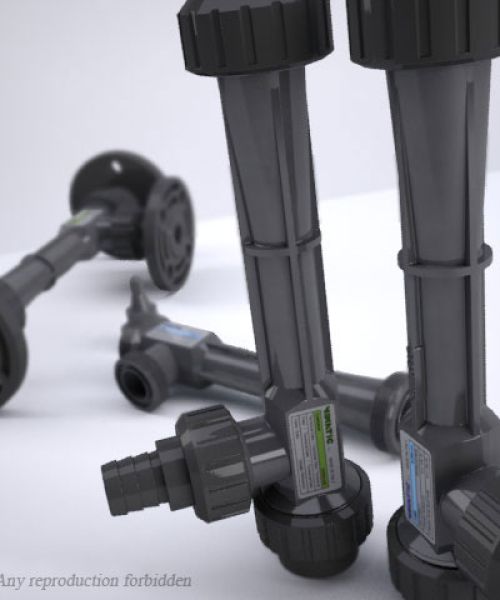

VIEW

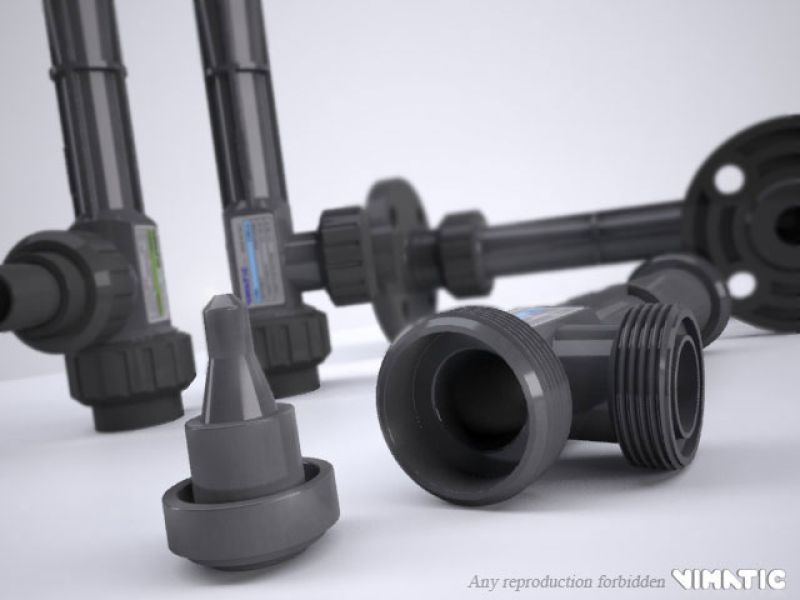

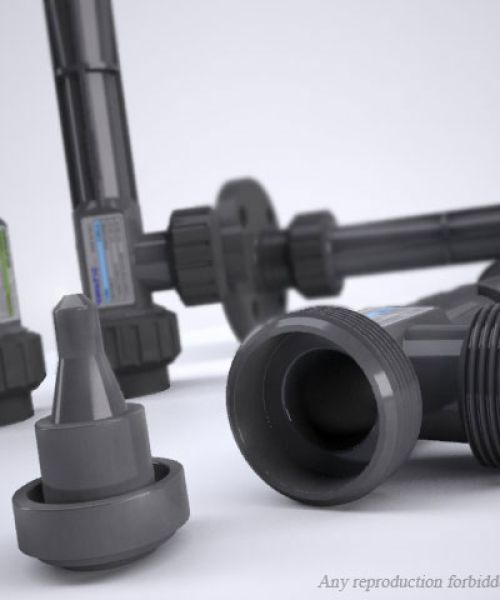

VIEW

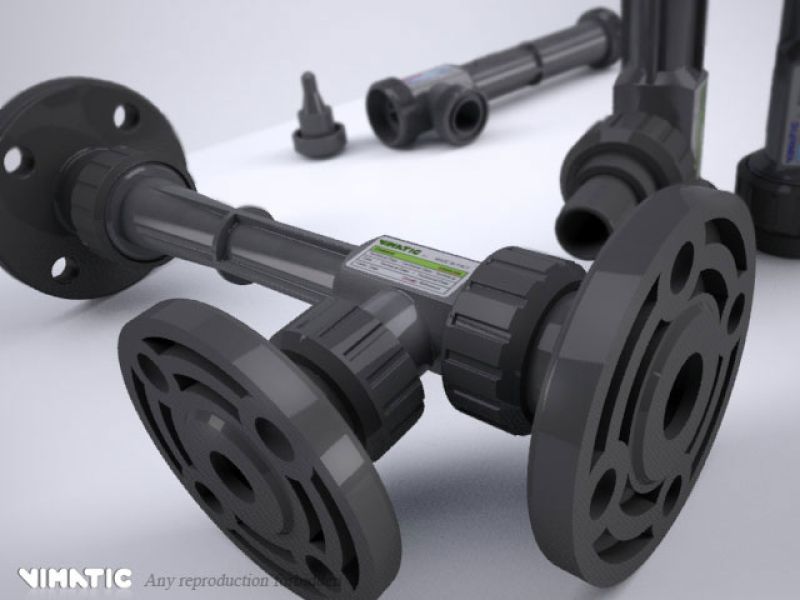

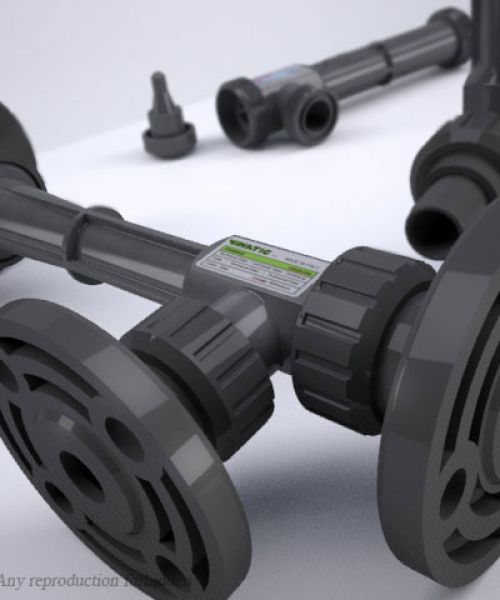

VIEW

BASIC CHARACTERISTICS

Materials: 30% glass charged PP body and nozzle; PVC pipe unions; EPDM gaskets.
Inlet/Outlet connections: 30% glass charged PP body and nozzle; PVC pipe unions; EPDM gaskets.
Intake connection: socket union ND 20 PVC with bonding (on union ends) or with 1.1/4"x25 hose adaptor.
Maximum size in mm: 225 x 70 x 48 (socket unions and hose adaptors excluded).

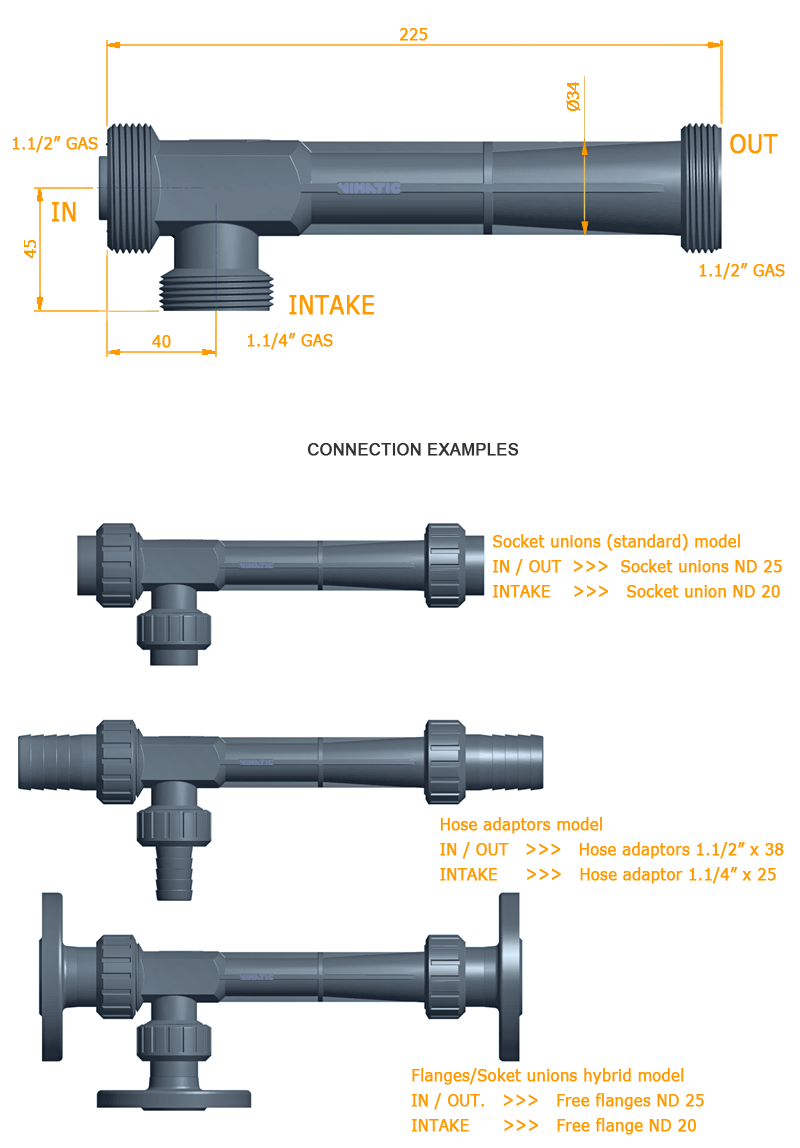

DIMENSIONAL SCHEME (mm)

HOW TO CHOOSE AN EJECTOR

In order to approximately choose the optimal ejector type some information is needed (e.g. flow rate, pressure, required intake). The chart below shows schematics examples of performances using water as motor and sucked fluid. The values indicated in the chart are just examples, it is in fact possible to require a perfectly adapted to the needs model.

Type	Flow Rate lt/h (IN)	Pressure bar (IN)	Suction lt/h	Vacuum meters	Back Pressure meters
A	1200	2	800	- 6	3
B	1200	2	700	- 4	5
C	1200	4	800	- 4	10
D	1200	6	800	- 4	18
E	1200	6	800	0	20
F	1000	6	1000	0	15

Further special models can be assembled on demand

Technical patterns are available in the DOWNLOAD area. Please register to see them.
