Pneumatic Valves 1/2"

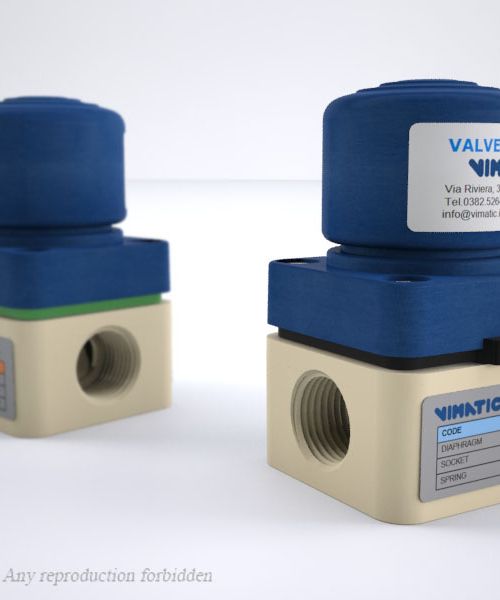

This new version of the Vimatic valve features a raised connection base to accommodate 1/2" female threaded connections. Like all Vimatic plastic pneumatic valves, these are particularly useful to measure liquid and erosive substances; ease of use and unique characteristics such as the air control on the top make them suitable for the line assembly so to minimize the overall dimensions. All the materials used for the construction are of high quality. The bases and the internal diaphragms can be differentiated according to the liquid to be detected, which guarantees long time reliability. Every valve is checked and duly tested in every phase of the production so to ensure the absolute integrity.

VAI

VAI

VAI

BASIC CHARACTERISTICS

Materials: plastic.
Temperature range: up to 50° C.
Scale: N.C. On-Off. N.O. version on demand.
Working pressure: up to 8 (116 psi).
Control air pressure: from 4 to 6 standard bar (from 58 to 87 psi). Adjustable pressure on demand.
Connections: 1/2"G. Other sizes available on demand.
Diaphragm: EPDM, PTFE with EPDM, FPM, VMQ.
Air connector of pneumatic actuator: 1/8" G female.
Open/closed indicator: visible.
Valve fastening: with M5 screws.
Occupied area: suitable for line assembly (center to center distance 60 mm).

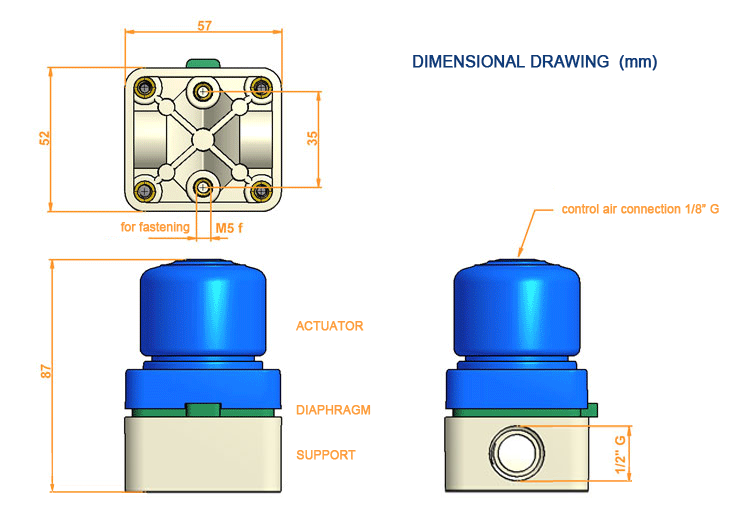

Maximum size in mm: 57 x 52 x 87 (h).

STANDARD MODEL

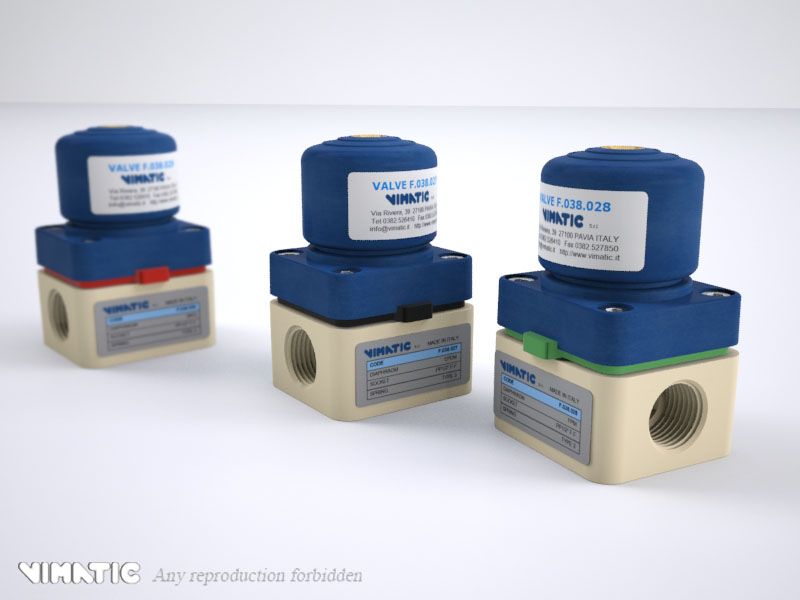

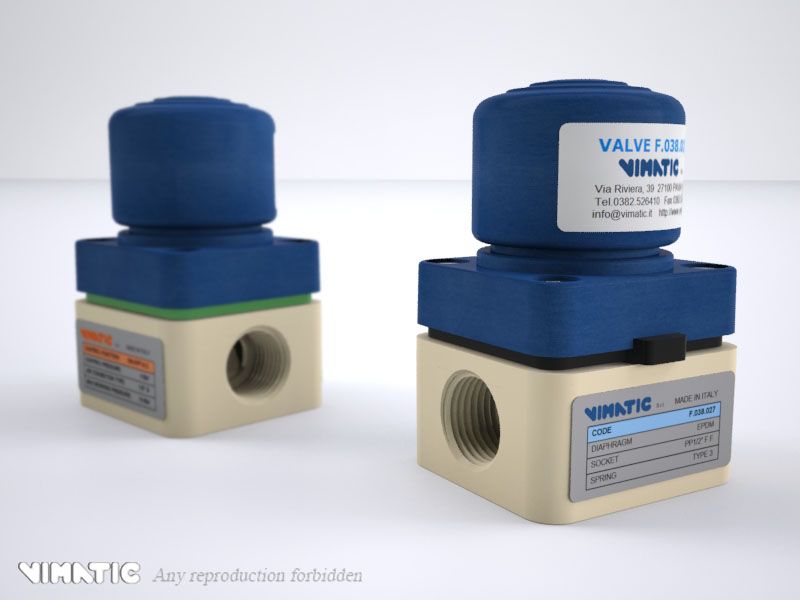

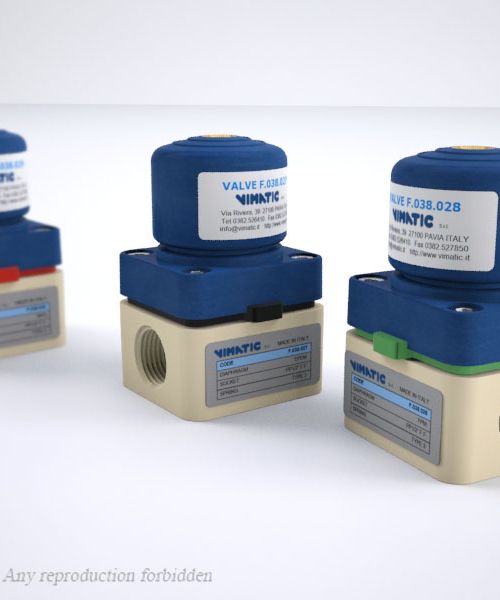

Code F.038.026 Valve with Polypropylene (PP) support - 1/2"G. F.F - Type 3 actuator Spring - EPDM+PTFE Diaphragm
Code F.038.027 Valve with Polypropylene (PP) support - 1/2"G. F.F - Type 3 actuator Spring - EPDM Diaphragm

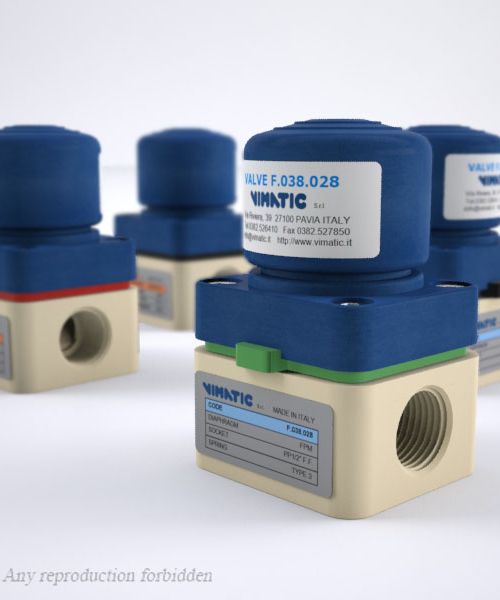

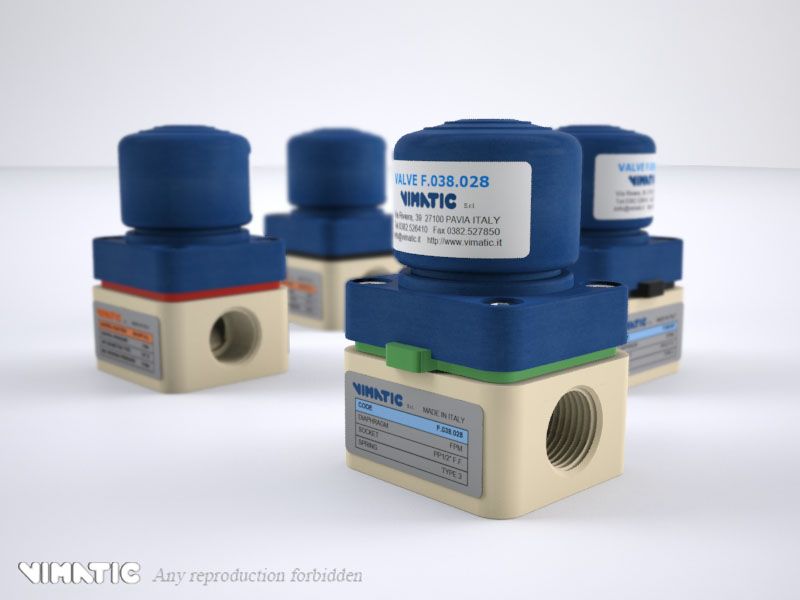

Code F.038.028 Valve with Polypropylene (PP) support - 1/2"G. F.F - Type 3 actuator Spring - FPM Diaphragm
Code F.038.029 Valve with Polypropylene (PP) support - 1/2"G. F.F - Type 3 actuator Spring - MVQ Diaphragm

SPECIAL OR ON DEMAND MODELS SAMPLES

Code F.038.030 Valve with Polypropylene (PP) support - 1/2"G. F.F - Type 1 actuator Spring - EPDM Diaphragm
Code F.038.031 Valve with Polypropylene (PP) support - 1/2"G. F.F - Type 2 actuator Spring - EPDM Diaphragm

Further special models can be assembled on demand

Technical patterns are available in the DOWNLOAD area. Please register to see them.
