Manifold valves

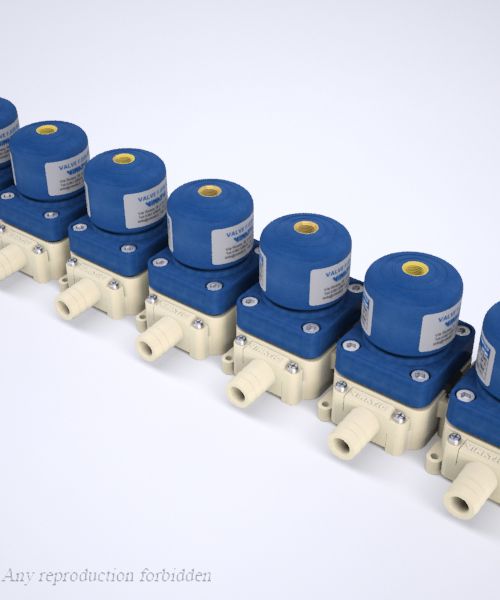

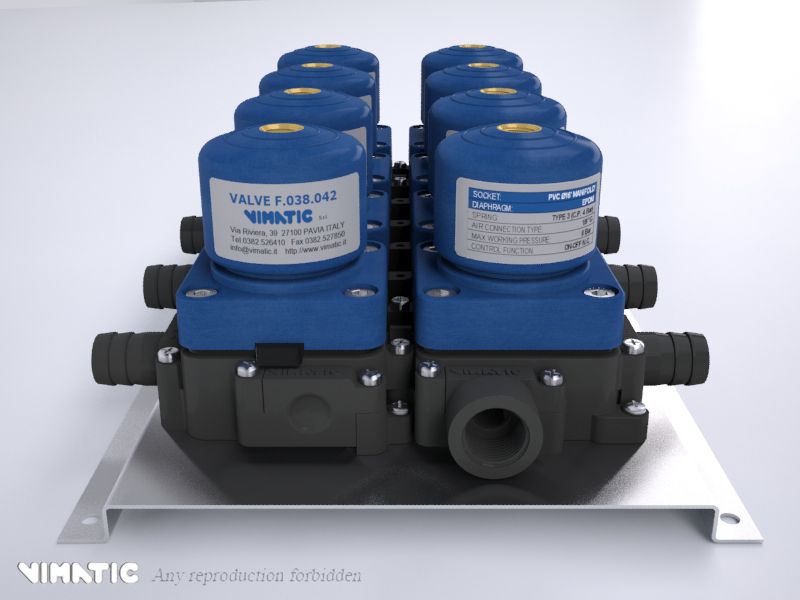

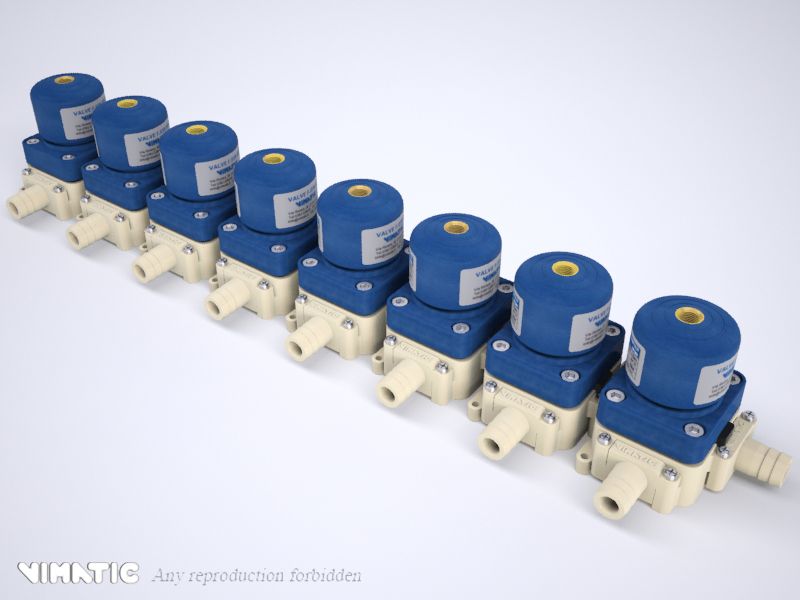

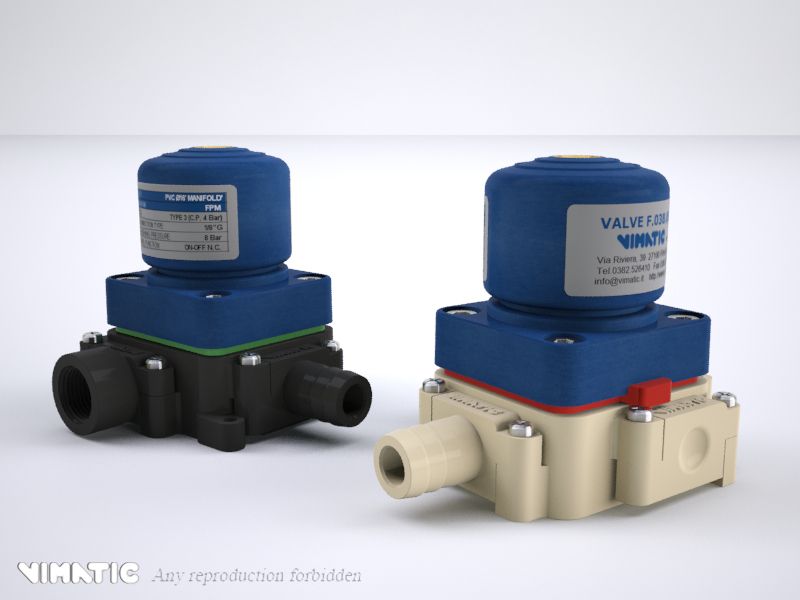

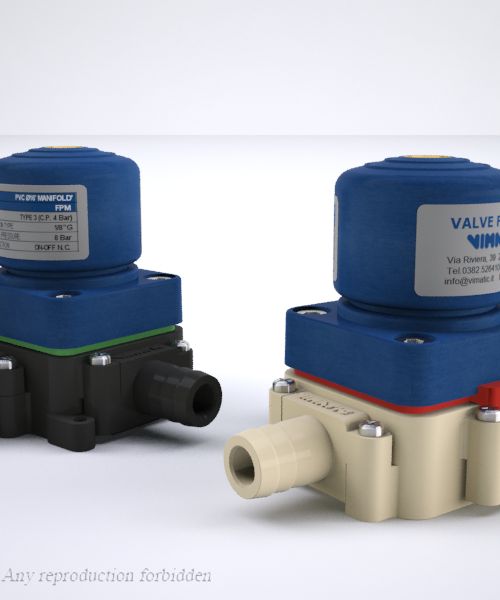

Vimatic new plastic “manifold” valves are an evolution of the previous multiway models. They represent a fully modular system for assembling valve groups to manage different products. The system is extremely versatile, allowing users to assemble the desired number of valves and easily carry out modifications and maintenance. The valves are connected to each other with special nipples. With the different connections, configurations can be adapted by modifying inlets, outlets, and flow directions. With this system, valve batteries can be assembled even in multiple rows without the need for gluing or welding. Each valve is supplied with three pre-opened passages, while a fourth passage can be opened by the end user according to specific requirements. These features, combined with the air connection located on the upper part of the actuator, make the manifold valves particularly suitable for compact multi-valve assemblies. Depending on the fluids to be intercepted, the internal diaphragms are available in EPDM, EPDM+PTFE, FPM, and MVQ. The bases with their connections are made of Polypropylene (PP) or Polyvinyl Chloride (PVC). Nipples and connections are equipped with double O-ring seals and are fastened with stainless steel screws. The valve batteries can be secured with screws on plates/panels, either from the front or from the rear..

BASIC CHARACTERISTICS

Temperature range: until 30° C (PVC) - until 50° C (PP).
Scale: N.C. (Normally closed) ON-OFF.
Working pressure: until 8 bar.
Control air pressure: 4 - 6 standard bar. Adjustable pressure on demand.

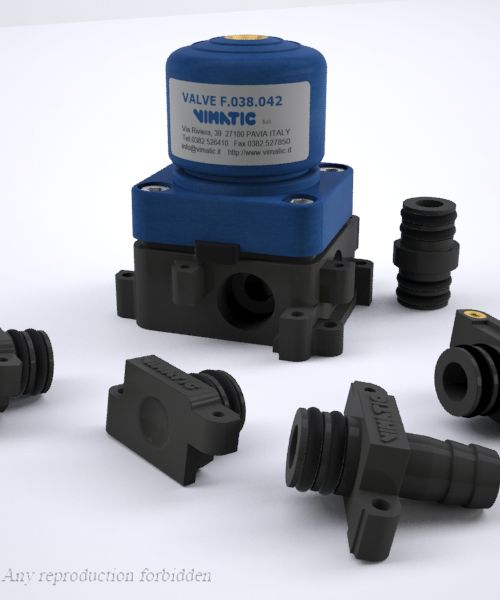

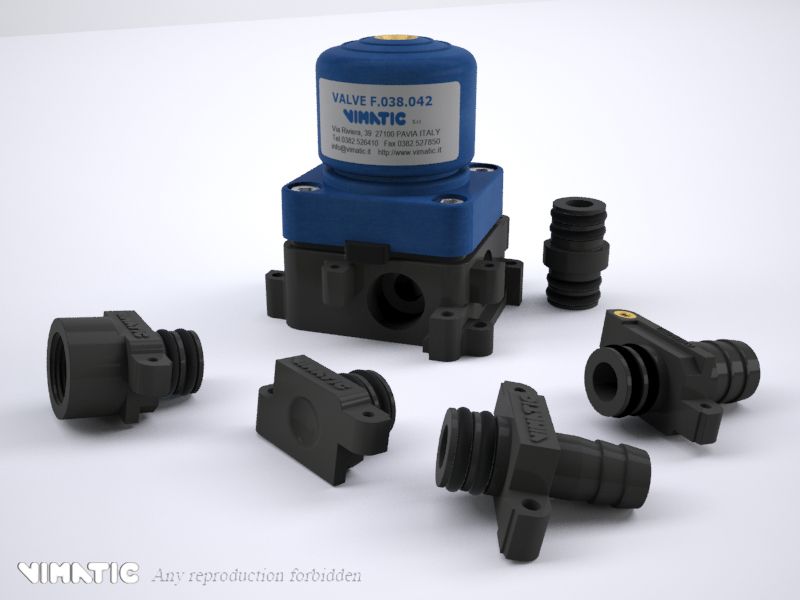

Connections: hose holder ∅13 - hose holder ∅16 - 3/8" GAS F. - nipple - closing terminal.
Diaphragms: EPDM, PTFE with EPDM, FPM, MVQ.
Air connector of pneumatic actuator: 1/8" G F.
Open/closed indicator: visible.
Valve fixing: M5 screws (behind) or M4 screws (front).
Occupied area: suitable for line assembly (center to center 60 mm).

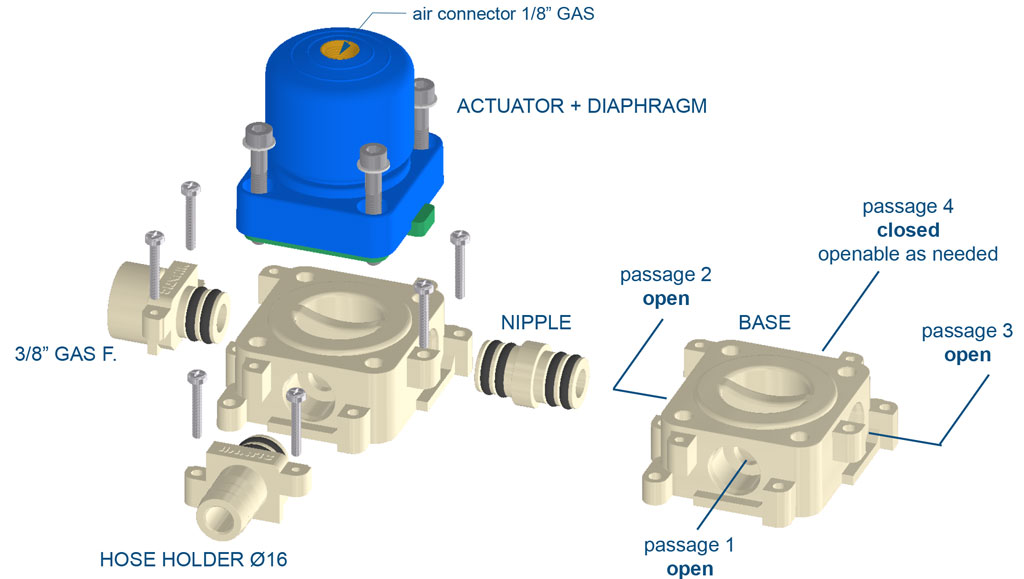

VALVE SCHEME WITH CONNECTIONS

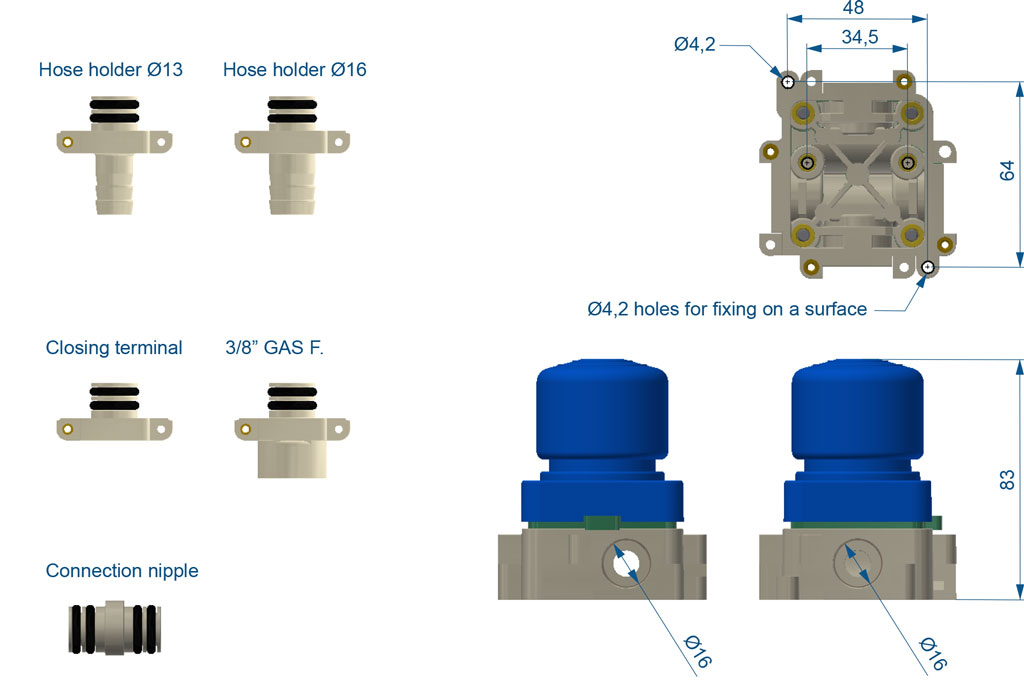

TYPES OF ATTACHMENTS AND DIMENSIONAL SCHEME

SUPPORT PVC MODELS

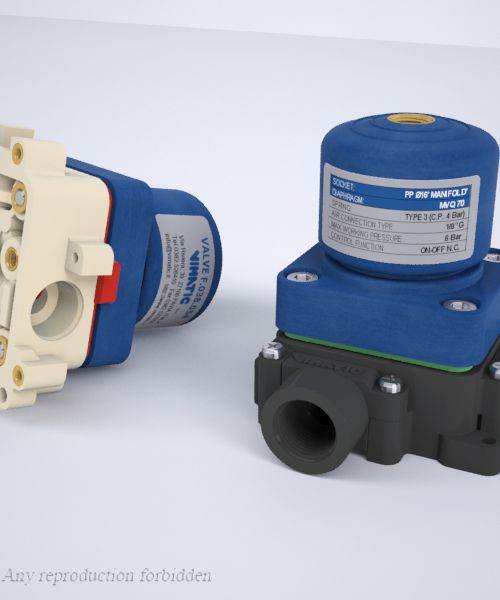

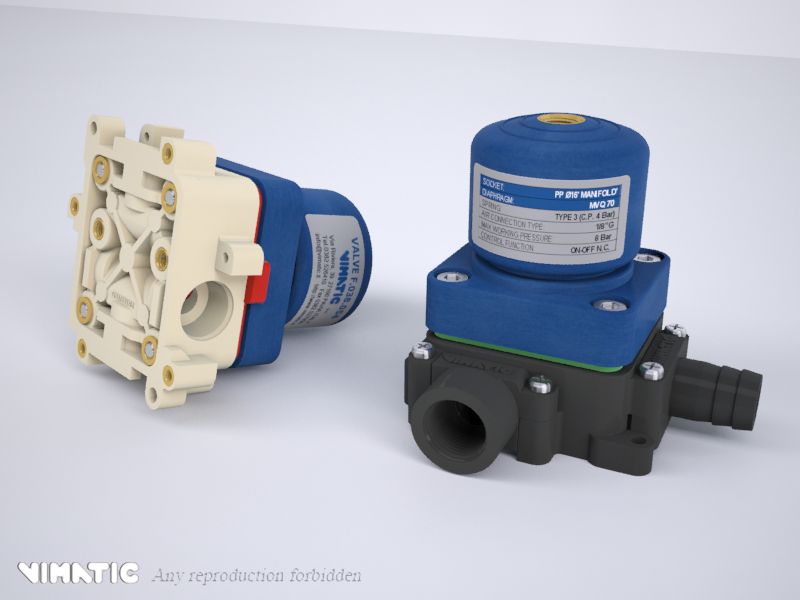

Code F.038.041 MANIFOLD valve with PVC support - Actuator spring type 3 - EPDM+PTFE diaphragm
Code F.038.042 MANIFOLD valve with PVC support - Actuator spring type 3 - EPDM diaphragm
Code F.038.043 MANIFOLD valve with PVC support - Actuator spring type 3 - FPM diaphragm
Code F.038.044 MANIFOLD valve with PVC support - Actuator spring type 3 - MVQ diaphragm

SUPPORT PP MODELS

Code F.038.051 MANIFOLD valve with PP support - Actuator spring type 3 - EPDM+PTFE diaphragm
Code F.038.052 MANIFOLD valve with PP support - Actuator spring type 3 - EPDM diaphragm
Code F.038.053 MANIFOLD valve with PP support - Actuator spring type 3 - FPM diaphragm
Code F.038.054 MANIFOLD valve with PP support - Actuator spring type 3 - MVQ diaphragm

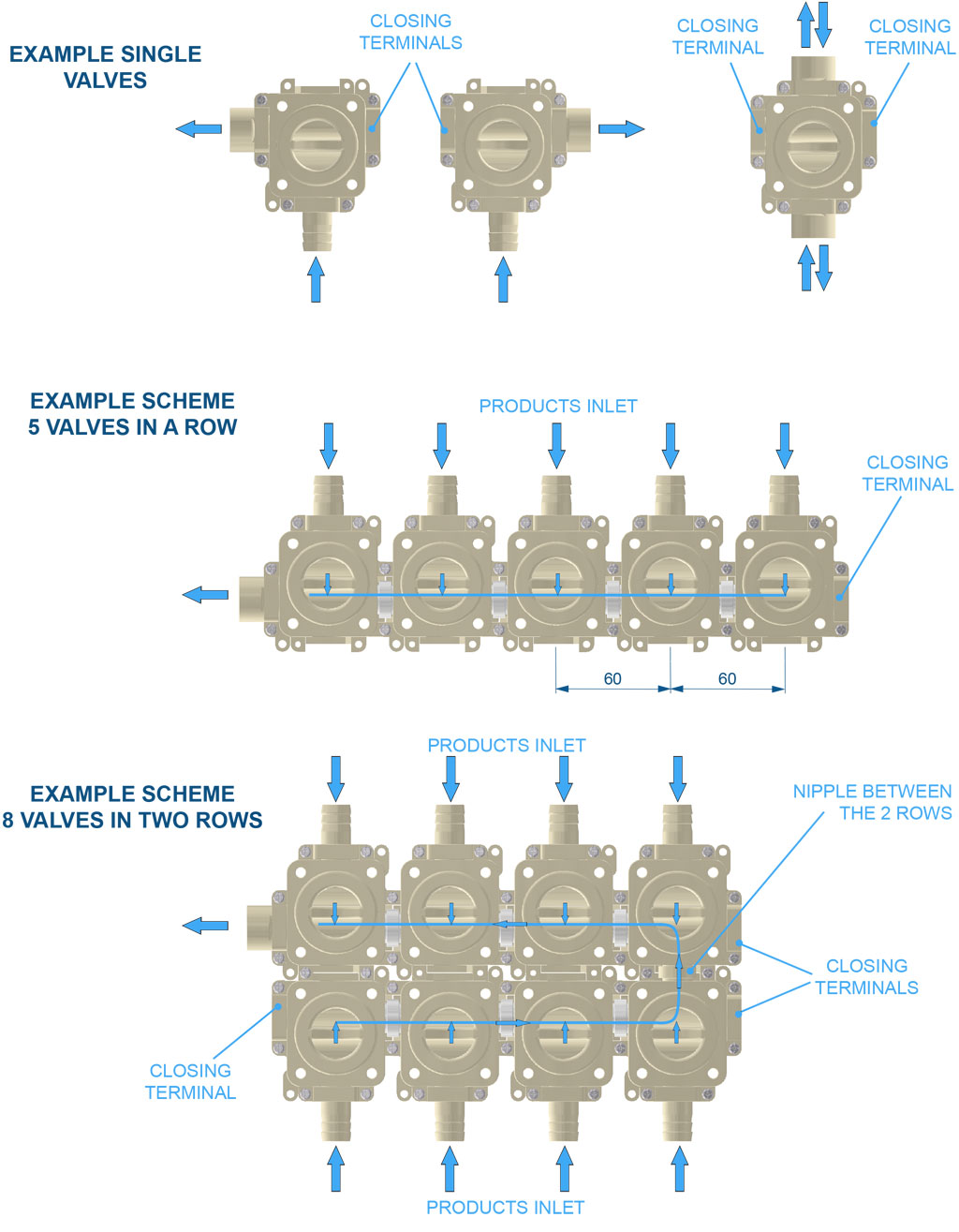

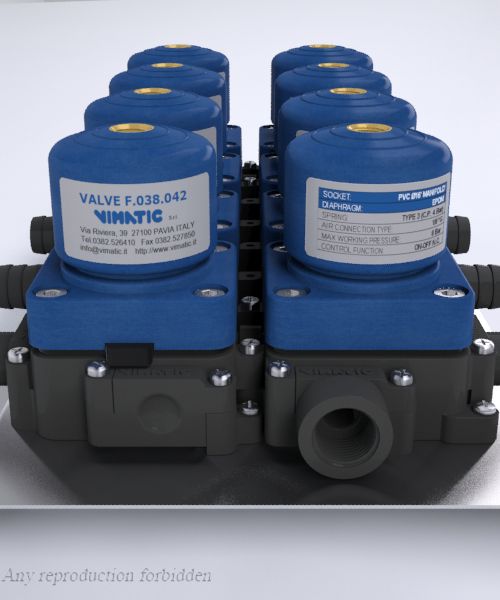

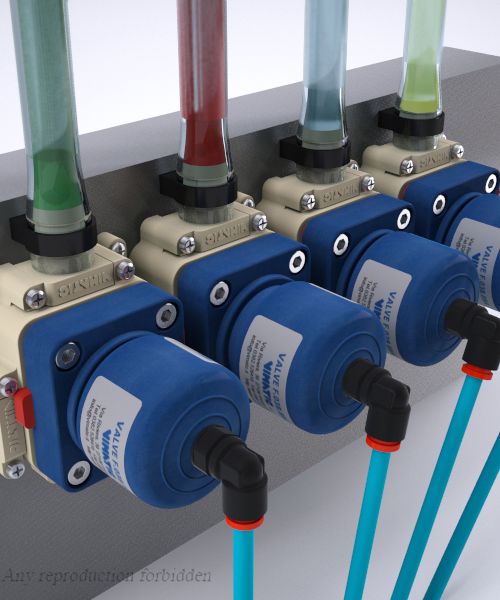

INSTALLATION SCHEMES

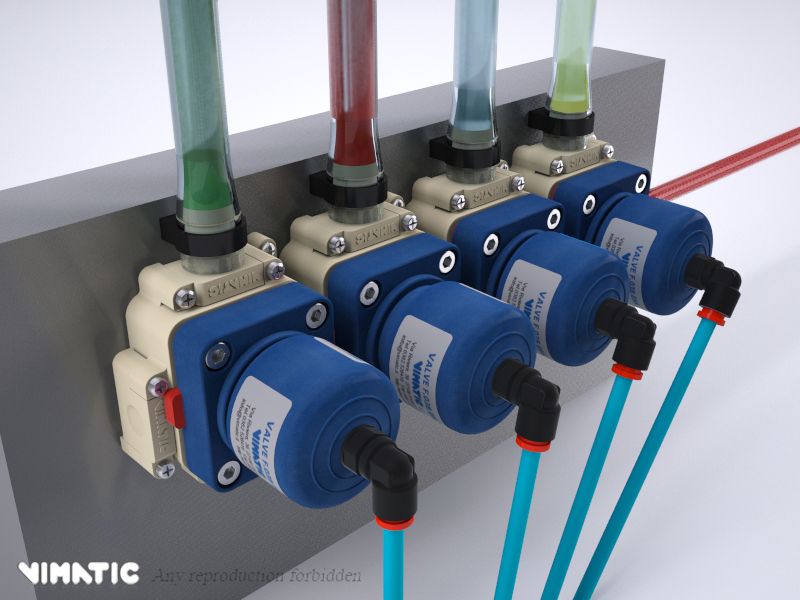

Manifold valves can be supplied by Vimatic individually with two removable connections (hose holder, 3/8" fitting, nipple, and plug) or directly assembled in groups of variable composition and quantity upon customer request. These are some of the countless installation possibilities:

Further special models can be assembled on demand

Technical patterns are available in the DOWNLOAD area. Please register to see them.
